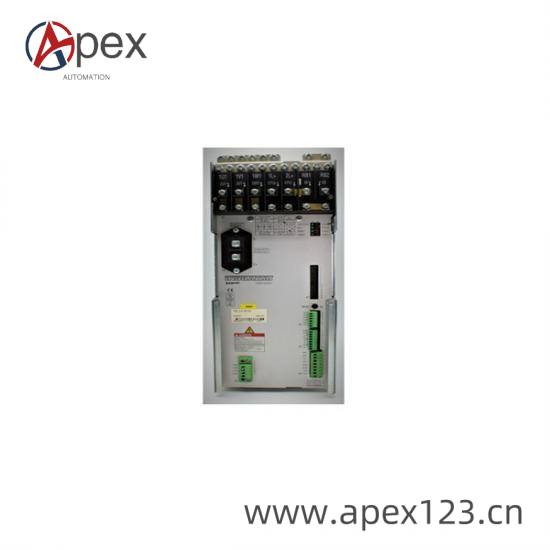

Indramat 109-525-2237A-3 Servo Drive Module
The Indramat 109-525-2237A-3 Servo Drive Module delivers high-precision motion control for demanding industrial automation systems. Engineered for robotics, CNC machinery, and production lines, this module ensures exceptional positioning accuracy and torque stability in critical manufacturing processes.
Technical Specifications
| Manufacturer | INDRAMAT |
| Model | 109-525-2237A-3 |
| Input Voltage | 24V DC |
| Current Rating | 10A (Continuous) |
| Control Method | Vector Control |
| Frequency Response | 1kHz |
| Dimensions | 6.5″ x 4.5″ x 2.5″ (165mm x 114mm x 64mm) |
| Weight | 3.5 lbs (1.6 kg) |
| Operating Temperature | -20°C to +70°C |
| Protection Rating | IP65 |
Industrial Applications
This servo drive module excels in precision-critical environments including:
- Robotic assembly lines with repeatability requirements ≤0.01mm
- Packaging machinery with high-speed cyclic operations
- Metal processing CNC systems requiring torque stability
- Automated material handling systems
Compatible with Indramat MKD/KDS series motors and integrates seamlessly with Bosch Rexroth control systems. For alternative configurations, inquire about compatible servo amplifiers.
Why Choose Apex Automation?
Apex Automation delivers industrial solutions since 2014, specializing in ready-to-ship automation components. Our engineering team provides:
- Pre-sales Technical Consulting: Application-specific drive configuration guidance
- 1-Year Warranty: Comprehensive failure coverage including component replacement
- Cross-Brand Compatibility: Solutions for legacy system integration
- Global Logistics: DDP shipping to 27 countries with customs clearance
Exact pricing and delivery options available via:
WhatsApp Technical Support
Can’t find your model? We source obsolete industrial components – email specifications to
anikaqx@gmail.com for solution proposals within 24 hours.
