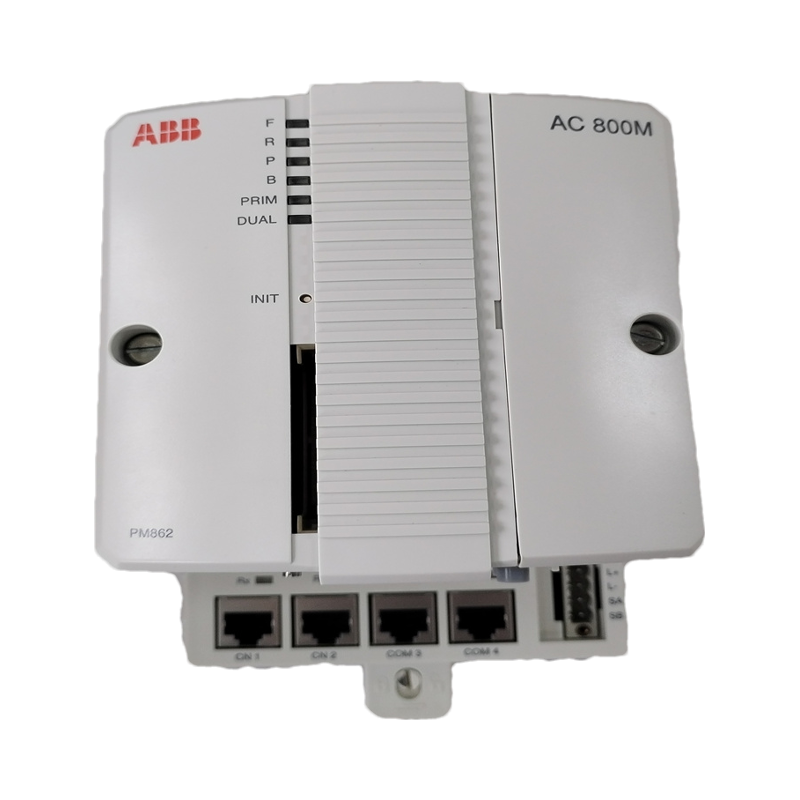

ABB PM862K01

1. Processor and Performance
   • Clock Frequency: 67 Mhz.
   • Performance for 1000 Boolean operations: 0.18 milliseconds.
   • Memory:
     • Total available RAM for applications: 23521 MB.
     • Flash memory for storage: Yes.
     • Firmware stored in Flash PROM: 4 MB memory.
2. Power Supply
   • Input Voltage: 24 V DC (19.2 V – 30 V DC).
   • Power Consumption (+24 V type/maximum): 210 / 360 mA.
   • Power Dissipation (type): 5.1 W (maximum 8.6 W).
   • Redundant Power Status Input: Yes.
3. Communication
   • Ethernet Ports: 2 built – in redundant Ethernet ports. Ethernet interface follows Ethernet (IEEE 802.3), 10 mbit, RJ – 45, female (8 – pin).
   • Control Network Protocols: Manufacturing Message Service (MMS) and Inter – Application Communication (IAC).
   • Recommended Control Network Backbone: 100 mbit switched Ethernet.
   • RS – 232C Interfaces: 2 (1 general – purpose, 1 for service tool).
     • RS – 232C interface (COM3) (non – red only): RS – 232C, 75 – 19200 baud, RJ – 45 female (8 – pole), non – isolated option, full RTS – CTS support.
     • RS – 232C interface (COM4) (non – red only): RS – 232C, 9600 baud, RJ – 45 female (8 – pole), isolated option, no RTS – CTS support.
4. I/O Related
   • I/O Clusters on non – red Modulebus with CPU: 1 electrical + 7 optical elements.
   • I/O Clusters on Modulebus with red CPU: 7 optical.
   • I/O Capacity on Modulebus: Maximum 96 (single PM862) or 84 (red PM862).
   • Modulebus Scan Rate: 0 – 100 milliseconds (actual time depends on the number of I/O modules).
   • Power Current on electrical Modulebus: 24 V: maximum 1.0 A; 5 V: maximum 1.5 A.
5. Other Parameters
   • Real – Time Clock Stability: 100 ppm (approx. 1 hour/year).
   • Maximum time for network time switching in.conf file: 10 milliseconds.
   • Number of applications per controller: 32.
   • Number of programs per application: 64.
   • Number of diagrams per application: 128.
   • Number of tasks per controller: 32.
   • Number of different cycles: 32.
   • Application cycle time: Reduced to 1 millisecond.

II. Functional Features

1. Safety and Diagnosis
   • ISA safety – certified, providing high read reliability and simple fault diagnosis procedures.
2. Modularity
   • Modular design allows for step – by – step expansion.
3. Protection and Configuration
   • IP20 class protection, eliminating the need for a storage module.
   • Can be configured with 800xA control builder.
   • Fully EMC – certified.
4. Bus and Communication
   • A pair of BC810 / BC820 can be used to cut the CEX bus.
   • Based on standard hardware to achieve optimal communication connections (such as Ethernet, PROFIBUS DP, etc.).

III. Application Scenarios

1. Industrial Automation
   • Commonly used in industrial automation systems where high – performance control and reliable communication are required. The built – in redundant Ethernet ports ensure stable data transmission in network – based control systems.
2. Process Control
   • Suitable for process control applications, for example, in chemical plants, power plants, etc. The high – speed processing performance and modular design can meet the complex control requirements of different processes. The ability to support a large number of applications, programs, and diagrams allows for comprehensive process management and control.
