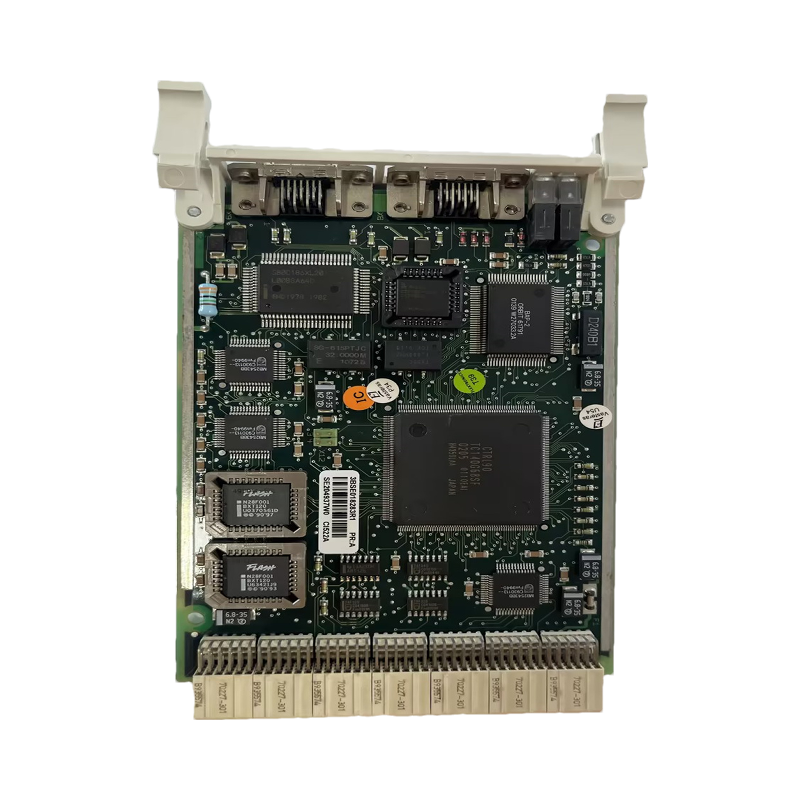

ABB CI522A

Technical Specifications

• Communication Protocol:
  Supports AF100 protocol for seamless integration with ABB’s Advant Fieldbus systems, enabling redundant communication pathways for enhanced reliability 21.
• Physical Design:
  • Dimensions: 265 mm (depth/length) × 27 mm (height) × 120 mm (width)
  • Weight: 0.2 kg
  • Form factor: Rack-mountable with compact design for space-constrained installations 21.
• Power Supply:
  Operates on 24V DC (voltage range typically ±10%) with low power consumption, ensuring stable operation in energy-sensitive environments 1.
• Environmental Resilience:
  • Operating temperature: -20°C to +60°C
  • Humidity tolerance: 5–95% non-condensing
  • Compliance: RoHS-exempt (2011/65/EU) and CE-certified for global industrial use 21.
• Redundancy:
  Supports dual-port AF100 connectivity for redundant communication links, minimizing downtime in critical processes 17.

Functional Features

1. Redundant Communication Architecture:
   • Enables hot standby configuration, where a secondary module automatically 接管 control if the primary fails, ensuring uninterrupted operation 1.
   • Monitors network health and switches between redundant paths without manual intervention.
2. High-Speed Data Transfer:
   • Supports data rates up to 1 Mbps for real-time control and monitoring of industrial processes 7.
   • Low latency ensures rapid response to sensor inputs and actuator commands.
3. Modular Integration:
   • Interfaces directly with ABB’s S800 I/O modules, allowing scalable system expansion (e.g., analog/digital I/O, motor control) 21.
   • Compatible with third-party devices via standard protocols like PROFIBUS DP (optional) 1.
4. Diagnostic Capabilities:
   • Built-in LED indicators for power status, communication activity, and fault detection.
   • Integrates with ABB’s Automation Builder software for remote diagnostics and parameter adjustment 1.
5. Safety Compliance:
   • Designed for SIL3-rated systems (per IEC 61508), making it suitable for safety-critical applications in industries like oil and gas 1.

Application Scenarios

1. Process Automation:
   • Controls complex chemical, petrochemical, and pharmaceutical production lines by managing I/O signals from sensors and actuators.
   • Ensures precise coordination of valves, pumps, and reactors in batch or continuous processes.
2. Power Generation and Distribution:
   • Monitors and controls turbines, generators, and substations in power plants.
   • Supports redundant communication in smart grid applications to maintain grid stability.
3. Water and Wastewater Treatment:
   • Manages pump stations, filtration systems, and chemical dosing processes with high reliability.
   • Enables remote monitoring of water quality parameters and equipment status.
4. Oil and Gas:
   • Safeguards offshore platforms and refineries by providing fail-safe communication for emergency shutdown systems (ESD).
   • Integrates with SCADA systems for real-time monitoring of wellheads and pipelines 17.
5. Mining and Metals:
   • Optimizes conveyor systems, crushers, and smelters by ensuring robust communication between PLCs and field devices.

Integration and Compatibility

• System Integration:
  Seamlessly integrates with ABB’s Ability™ System 800xA® and AC500 PLCs, as well as third-party DCS/PLC systems via PROFIBUS DP or Ethernet/IP (optional) 17.
• Software Tools:
  Configurable via ABB’s Automation Builder for parameter setup, diagnostics, and firmware updates.
• Redundancy Kits:
  Works with AF100 communication sets (e.g., 3BSE014070R1) to create fully redundant control loops 21.

Environmental and Safety Considerations

• Sustainability:
  RoHS-exempt design aligns with ABB’s commitment to reducing environmental impact.
• Reliability:
  Rugged construction withstands mechanical vibration and electromagnetic interference (EMI) common in industrial settings.
• Safety:
  SIL3 compliance ensures suitability for applications where system failure could lead to severe consequences 1.
