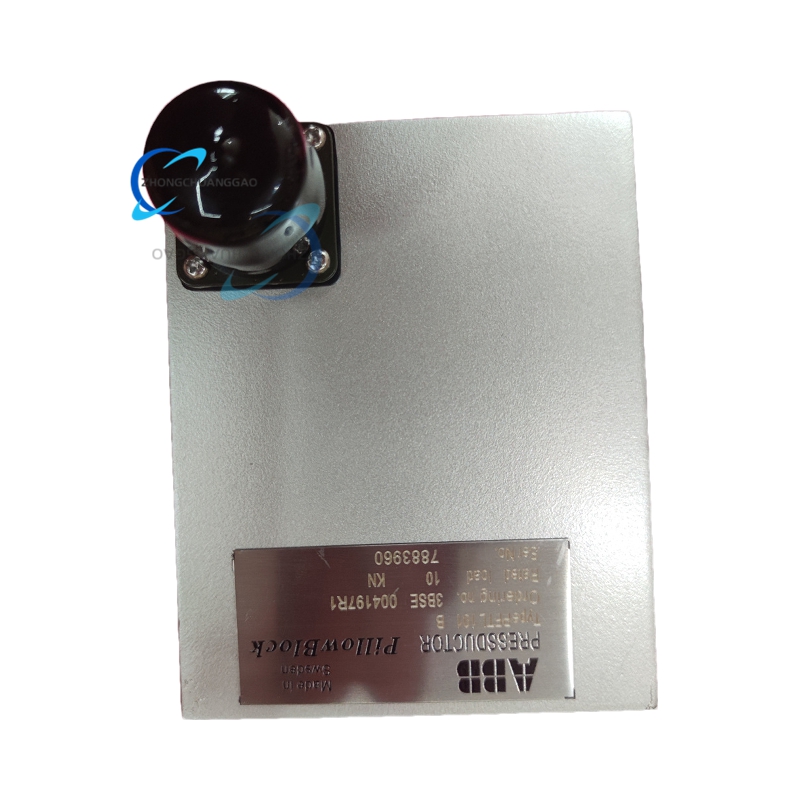

ABB 3BSE004197R1

2. Working Principle

It is based on the magneto – elastic effect. When subjected to mechanical force, the magnetic properties of the internal materials of the sensor change, generating a measurement signal proportional to the external force. This signal is not affected by physical movement or deformation, making the sensor both sensitive and capable of withstanding large overloads, and there is no inherent limit to the number of load cycles.

3. Technical Specifications

• Rated Load: 10 kN (equivalent to approximately 1000 kg of force, the maximum load the sensor can measure).
• Type: Magnetostrictive sensor (operates on the principle that the magnetic permeability of magnetic materials changes under mechanical force).
• Accuracy: Usually ±0.1% full – scale output (FSO), ensuring measurement accuracy.
• Operating Temperature Range: – 20°C to 60°C.
• Output Signal: 4 – 20 mA (a common standard signal in industrial automation for easy integration into control systems).
• Protection Level: IP66 or higher, indicating good dust – proof and waterproof performance for use in harsh environments.

4. Functional Features

• High – precision Measurement: It has excellent linearity and repeatability, providing accurate weight data to meet the high – precision weighing requirements in various industrial scenarios.
• Fast Response: Can quickly respond to changes in material weight, enabling real – time monitoring of weight data to help adjust the production process in a timely manner.
• High Reliability: The combination of high – quality materials and advanced production processes allows the sensor to maintain stable performance in harsh environments, reducing the frequency of maintenance and replacement.
• Easy Installation and Maintenance: Equipped with various installation accessories and user – friendly maintenance tools, it is convenient for users to install and calibrate, reducing installation and maintenance difficulties and costs.

5. Application Scenarios

• Food Industry: Used to detect the weight of packaging materials and containers to ensure the accuracy and consistency of product packaging.
• Chemical Industry: Suitable for weighing and monitoring the weight of liquids and solids, facilitating precise control of raw material input and product output.
• Logistics Field: Can be used to weigh and monitor the weight of goods during transportation, enabling accurate statistical management of cargo weight.
• Industrial Automation and Manufacturing: Applied in industrial automation, robotics, material handling, and manufacturing and processing equipment, especially in scenarios requiring high – precision measurement. Specific applications include measuring paper tension in the paper industry, rubber pressure in the rubber industry, plastic injection pressure in the plastic industry, and textile tension in the textile industry
