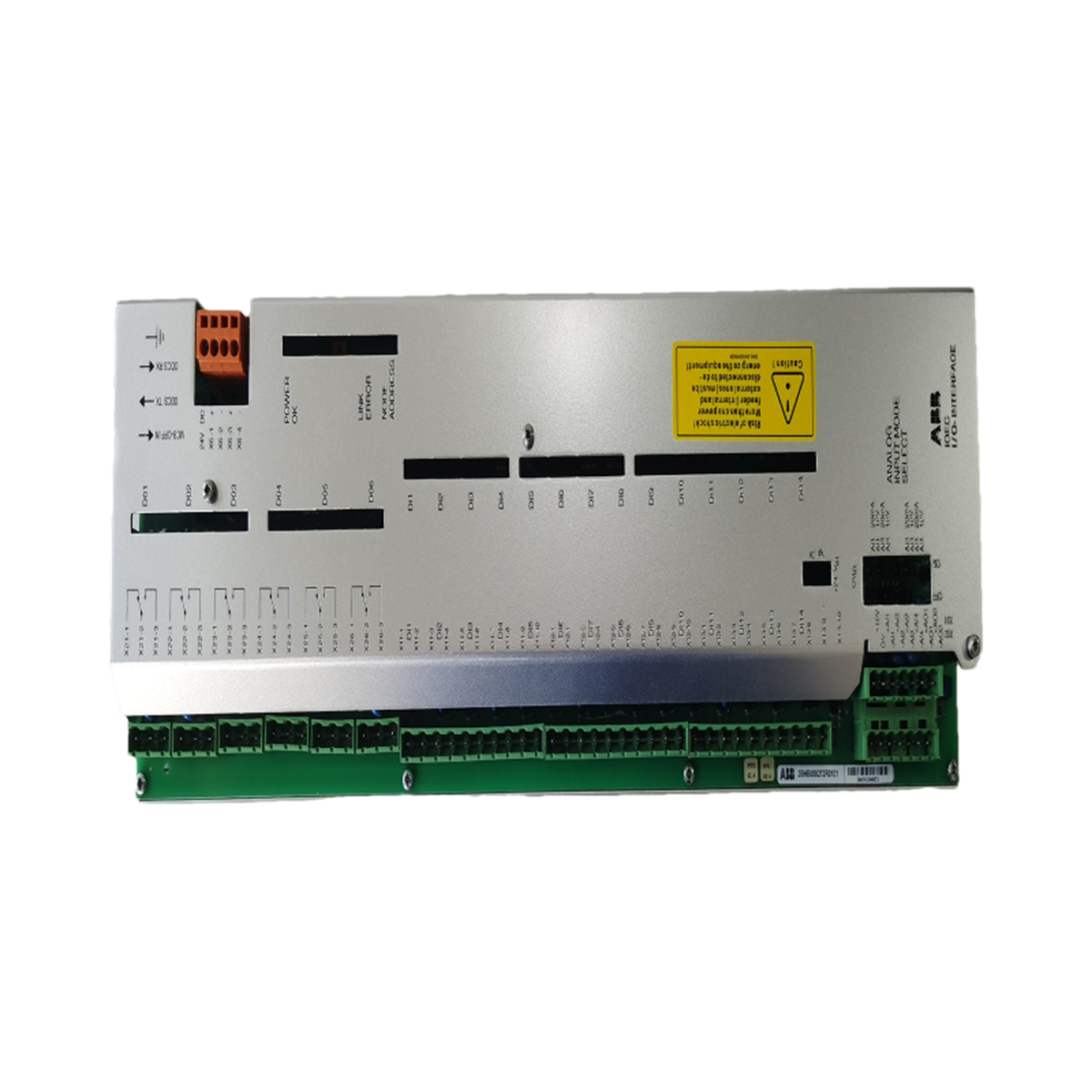

ABB UFC719AE01

Technical Specifications

• Power Supply: Operates on 24V DC with a maximum power consumption of 6W, ensuring stable operation in energy-sensitive environments.
• Digital I/O: Features 32 digital inputs and 32 digital outputs, each supporting 24V DC signals. Input current is ≤7 mA, and output current is ≤500 mA, with voltage ranges of 0–30V DC for both inputs and outputs.
• High-Speed Counters: Includes 4 high-speed counter inputs capable of handling frequencies up to 100 kHz, ideal for applications requiring precise pulse counting or encoder feedback.
• Communication Interfaces:
  • RS485 for serial communication, supporting Modbus RTU protocol.
  • Optional Ethernet and CANopen interfaces (varies by version) for integration with PLCs, HMIs, and other industrial devices.
• Operating Temperature: Functions reliably between -25°C and +70°C, ensuring durability in extreme industrial conditions.
• Physical Dimensions: Measures 130 mm (height) × 35 mm (width) × 130 mm (depth), with a weight of approximately 0.3 kg, allowing compact installation in control panels.
• Protection: Standard version offers IP20 protection against dust and solid particles, while variants like UFC719AE101 may include IP65 (optional) for enhanced resistance to water and dust.

Functional Features

1. Modular Design:
   • Supports hot-swappable modules, enabling component replacement without system downtime.
   • Expandable architecture allows integration with up to 16 MasterBus 300 nodes for scalable automation systems.
2. Advanced Signal Processing:
   • Real-time data acquisition and processing for analog and digital signals.
   • Built-in diagnostic tools monitor input/output status, communication integrity, and power supply health.
3. Programmable Logic Control (PLC) Capabilities:
   • Supports ladder logic and structured text programming for custom control sequences.
   • Slave processor offloads tasks from the main controller, optimizing system performance.
4. High-Speed Operations:
   • Response times ≤1 ms for both digital inputs and outputs, ensuring rapid system feedback.
   • High-speed counters facilitate accurate motion control and process monitoring.
5. Environmental Resilience:
   • Conformal coating (optional) protects against corrosion, humidity, and chemical exposure in harsh industrial settings.
   • Wide temperature range and rugged construction ensure reliability in extreme conditions.

Application Scenarios

1. Industrial Automation:
   • Controls conveyor systems, robotics, and machinery in manufacturing plants.
   • Manages process variables in chemical, petrochemical, and pharmaceutical industries.
2. Power Systems:
   • Regulates DC motors in power generation and distribution systems.
   • Monitors and controls electrical equipment in substations and renewable energy installations.
3. Material Handling:
   • Optimizes motor performance in cranes, elevators, and forklifts.
   • Ensures smooth operation of mining and quarrying machinery.
4. HVAC Systems:
   • Controls motor-driven pumps and fans for energy-efficient climate management.
5. Specialized Industries:
   • Used in marine propulsion systems and wind turbines, where reliability and precision are critical.
   • Supports high-performance applications like rolling mills and paper machines, requiring fast response times.

Integration and Compatibility

• System Compatibility: Seamlessly interfaces with ABB’s DCS800 drives, AC500 PLCs, and other third-party devices.
• Communication Protocols: Supports Modbus RTU, CANopen, and Ethernet/IP (varies by version), enabling integration with SCADA systems and HMIs.
• Software Tools: Configurable via ABB’s Automation Builder software for parameter setup, diagnostics, and programming.

Environmental Compliance

• RoHS Directive: Compliant with EU environmental standards, ensuring minimal impact on ecosystems.
• Certifications: Meets IEC 61131-2 and UL 94 V-0 standards for safety and flammability.
